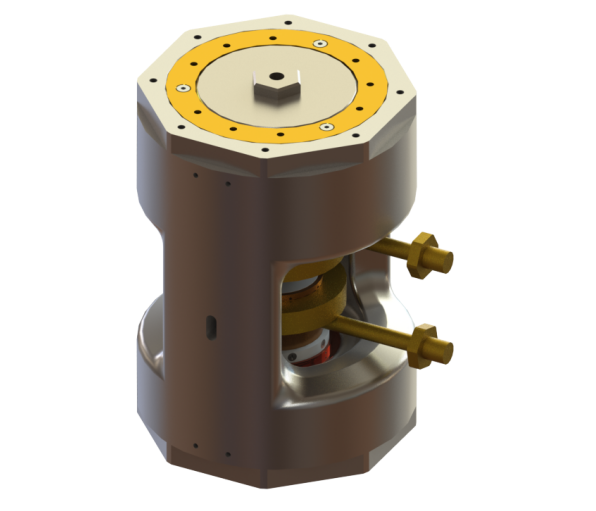

High temperature side wide-angle high-pressure press: EM-LA-200-1200K
This device is designed as a side wide-angle high-pressure press with a heating device, which can accurately pressurize the high-pressure press through an electric pressure pump. It has a simple structure and is easy to use. The added high-temperature environment unit can achieve a maximum high-temperature environment of 1200K.
Technical Specifications:
1. Maximum pressure output of the press: 200T;
2. Piston diameter: φ 115mm;
3. Size specification: φ 250 * 330mm, excluding support base;
4. Working medium: hydraulic oil;
5. Bottom mounted hydraulic cylinder, 1/4 "input end;
6. Material: martensitic high-strength steel;
7. High temperature unit: High temperature heating element, ring mounted circulating water cooling unit;
8. Hydraulic pump: 200MPa injection pump;
9. Pipeline: 260MPa high-pressure quick connect hose;
10. Whole machine weight:~75KG;
11. Includes one set of main body, one set of high-temperature suitable cushion block, one set of high-temperature tungsten carbide anvil (sample diameter usually 1-3mm), one set of room temperature and high-pressure suitable cushion block and limit aluminum sleeve, one set of water cooling system, and one set of intelligent high-temperature temperature controller.
*Optional equipment can be added: intelligent temperature control systems with different powers that match different high-temperature zones, sample sealing gaskets.
