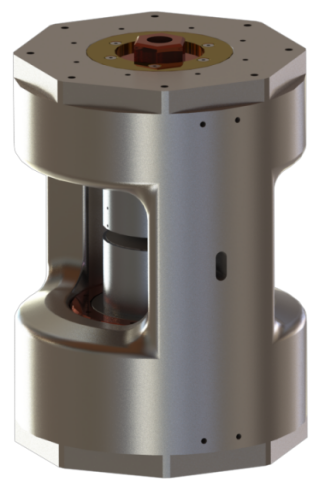

200 ton side wide-angle high-pressure press: EM-LA140-200
This device is a standard side wide-angle high-pressure compressor that can be accurately pressurized and depressurized by an electric pressure pump. It has a simple structure and is easy to use. Match the anvil with polycrystalline diamond or tungsten carbide. On this basis, the standard can also be modified to include high or low temperature environmental testing, or made into a through-hole form to meet axial light inlet requirements.
Technical Specifications:
1. Maximum pressure output: 200T;
2. Piston diameter: φ 115mm;
3. Size specification: φ 250 * 330mm, excluding base;
4. Working medium: hydraulic oil;
5. Bottom mounted hydraulic cylinder, 9/16 "input end;
6. Material: martensitic high-strength steel;
7. Hydraulic pump: 200MPa injection pump;
8. Pipeline: 260MPa high-pressure quick connect hose;
9. Whole machine weight:~68KG;
10. Includes one set of main body, one pair of tungsten carbide intermediate pads, one set of bottom pads, and one set of limit aluminum sleeve.
*Additional optional equipment can be added: sample sealing gasket, PCD anvil or tungsten carbide anvil (sample size can be customized).
