Heart piercing side wide-angle high-pressure press: EM-LA-200-TH

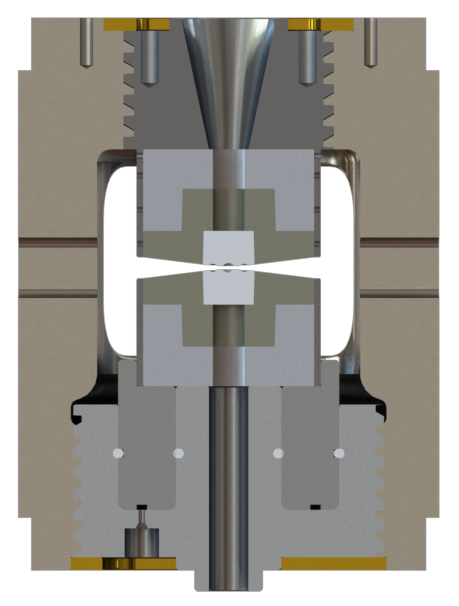

This device is a coaxial through structure high-pressure device that can accurately pressurize the high-pressure compressor through an electric pressure pump. It has a simple structure and is easy to use.
Technical Specifications:
1. Maximum pressure output: 200T;
2. Size specification: φ 250 * 290mm, excluding support base;
3. Working medium: hydraulic oil;
4. Bottom mounted hydraulic cylinder, 9/16 input end;
5. Coaxial through-hole design;
6. Upper opening angle: 40 °;
7. Maximum stroke of piston: 15mm;
8. Material: martensitic high-strength steel;
9. Hydraulic pump: 200MPa injection pump;
10. Pipeline: 260MPa high-pressure quick connect hose;
11. Whole machine weight:~53KG;
12. Includes one set of main body, one pair of hollow tungsten carbide intermediate pads, one set of hollow bottom pads, and one set of limit aluminum sleeve
*Optional equipment: sample sealing gasket, back hole PCD anvil or tungsten carbide anvil.
