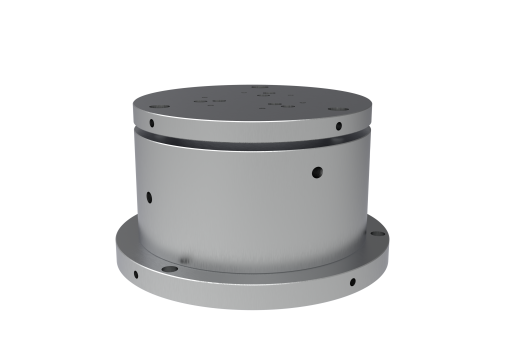

This device is a pressurization module device for a large chamber press, simulating the traditional 6-8 form of pressurization. The structure is simple and easy to use. With improved anvil support components, high-pressure loading and high-temperature testing of samples above mm level can be achieved. Includes 10 sets of domestically produced octahedral tungsten carbide assemblies (single unit 1 inch square, customizable corner cutting), excluding sample assembly and thermocouple consumables.

Technical Specifications:

1. Material: Martensitic high-strength steel and tungsten carbide;

2. External dimensions: diameter 350mm * 300mm, pressure resistance of 1000 tons;

3. Processing standards are based on metric specifications;

4. Processing accuracy requirements: parallelism better than ± 0.005, unmarked tolerance ± 0.02, coaxiality 0.003, perpendicularity 0.002, smoothness - base surface 0.4, end surface 0.8;

5. Matte rust prevention treatment for appearance.
