Common dual membrane pressure control assembly design
Introduction to the Device System:This device is a diamond anvil press designed with dual gas film in-situ pressure control, suitable for optical, XRD, and magnetic measurements in various temperature environments. This device can also derive pressure card sleeves suitable for multiple DACs, enabling in-situ pressure relief operations of DACs under complex working conditions such as low temperature, high temperature, or magnetic field. Combined with high-strength shells and small anvil surfaces, the maximum pressure can reach 400GPa.

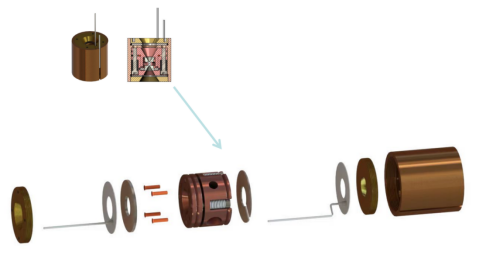

Schematic diagram of the assembly of a conventional in-situ dual membrane pressure control device press (taking low temperature as an example):
Taking the MDAC-48 double film loaded beryllium copper press device as an example, technical description:
The maximum operating pressure is 400GPa;
Open corners up and down; 40°；
Standard product working distance: 13mm;
Working temperature: --10K~450K;
Material: High strength beryllium copper alloy;
Cushion block: beryllium copper or non-magnetic steel;
Size specification: φ 48 × 50mm;
Weight:~325g;

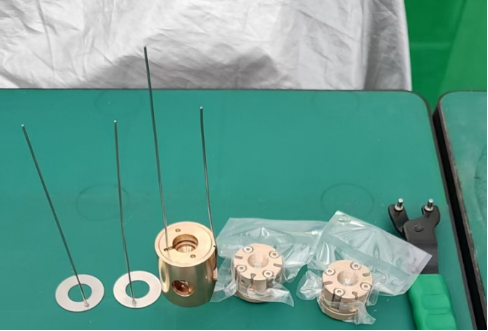

Attachment: One press machine, two air films, two 1/16 hand twisted double card sleeve connectors, two pressure relief pins, and two fixed DAC base screws.
