In situ hydraulic (~500MPa) loading device
Model: IS-SAXS100.This device is suitable for in-situ 500MPa pressure testing experiments on liquid, solid, or powder samples. It can be combined with a synchrotron radiation station for in-situ pressure/heating, and can be equipped with an automatic temperature controller and manual/automatic pressure device. Accepting customization of 30-500MPa. The pressure monitoring of this type of device is performed by a pressure sensor unit.
Technical Description:

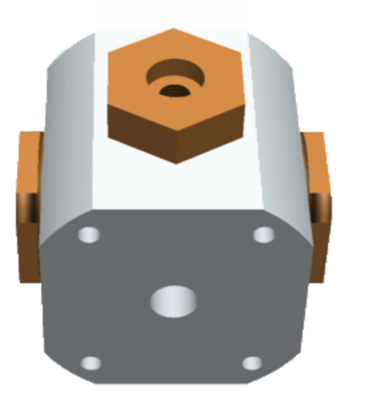

1. The in-situ cavity is made of high-strength steel, with standard design dimensions of 60mm × 60mm × 70mm;
2. The maximum designed pressure resistance is 600MPa, and it is recommended that the long-term usage pressure not exceed 500MPa;
3. This device is commonly used for SAXS research on biomaterials;
4. Incident angle 40 °, exit angle 40 °;
5. The sample can be solid/liquid, with a sample position diameter of 2mm;
6. Diamond window with a diameter of 3.2 × 0.5mm;
7. The top can be equipped with a heating element for temperature control. The standard sealing design has a temperature of less than 100 ℃ and can be customized;
8. The sample rack is an interchangeable CF4 bracket that can be customized according to actual working conditions.
*Optional options include a 700MPa manual booster pump, a 600MPa automatic hydraulic pump, and an ultra-high pressure display unit.
