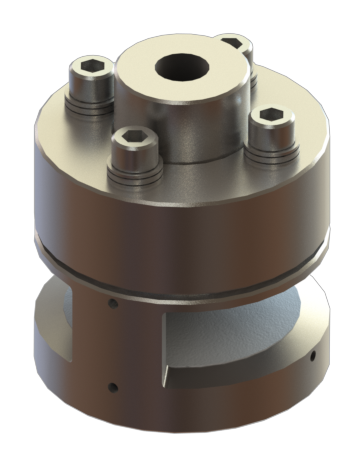

Ultra large anvil surface (2-4mm) for top anvil high-pressure device
Model: LVDAC01.This device is a high-pressure device designed for a large anvil surface diamond anvil, which can load or unload pressure in the pressure chamber through mechanical means or electric precision booster pump. The device has a simple structure and is easy to use. Through improved anvil support components, high-pressure loading tests of mm level samples can be achieved.
Technical Description:
1. Material: Martensitic high-strength steel;
2. Standard design dimensions: 50mm * 56.9mm;
1. Processing specifications are based on metric specifications and equipped with metric screw accessories;
2. Processing accuracy requirements: parallelism better than ± 0.005, unmarked tolerance ± 0.02, coaxiality 0.003, perpendicularity 0.002, smoothness - base surface 0.4, end surface 0.8;
3. Each set of press accessories: 2 left and 2 right pressure screws; 8 pieces of top wire Kimi, 80 pieces of Bell style disc springs, 2 pieces of protective Kimi, and 2 pieces of WC composite cushion blocks; Two 2mm diamond anvil presses on the anvil surface;
*Optional devices include sapphire anvil and silicon carbide anvil.
