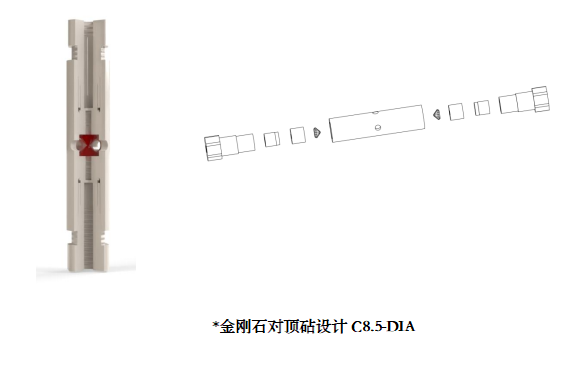

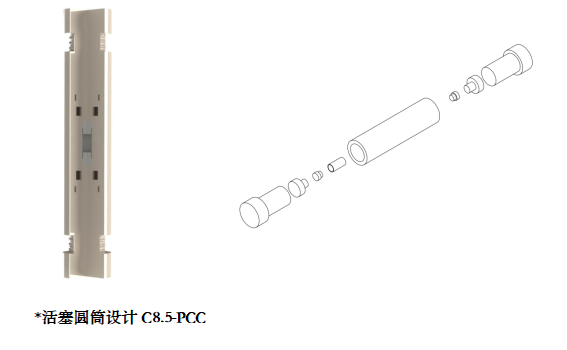

Fully ceramic plate press, especially suitable for strong magnetic field environments, avoiding eddy current effects under magnetic fields
This type of press is evolved from the 8.5 beryllium copper/non-magnetic steel cell and is suitable for high-pressure measurement environments under extreme magnetic fields such as pulsed strong magnetic fields. It also provides a completely non-magnetic ceramic version of the high-pressure press structure. Widely used in electrical/magnetic high-voltage experiments, it can be combined with MPMS equipment for physical property measurement under high voltage. We can customize and process materials such as beryllium copper, nickel chromium aluminum non-magnetic steel, and super titanium alloy.

Technical Specifications:


The material is zirconia ceramic, and non-magnetic reinforced plastic versions can also be customized;


Assembly height 42mm, outer diameter 8.5mm;


Each set of accessories: 1 ceramic press body, 3 adjusting screws, 8 Kimi top screws, a pair of diamond anvil, and a set of pressure tools.
