Spro DAC steel symmetrical diamond anvil press

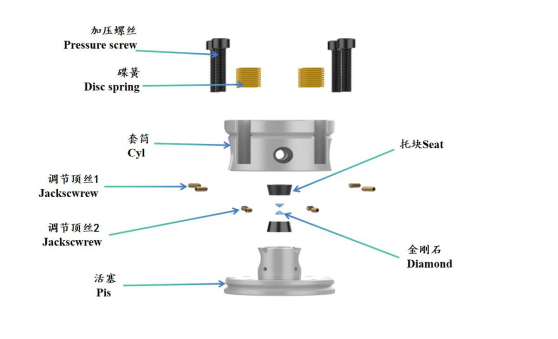

This type of cell is made of 440C special steel material, which enhances the material properties of the body through heat treatment, reduces wear and deformation, and improves the stability and durability of DAC; And the corrosion resistance of the press was improved by surface coating treatment.Model: Spro DAC.
DAC pressure chamber material: imported 440C high-strength steel (HRC58)
DAC specifications and weight: Φ 47.64mm × 35.77mm
Piston/Cylinder opening angle: 60 °
Standard product working distance: 18.0mm
Application scenario: Suitable for low-temperature -600K temperature environment; It is recommended to use diamond anvil with different diameters, and the pressure should not exceed 250GPa.
